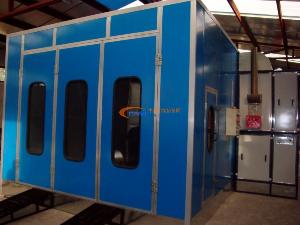

Fixed spray booth

Fixed Spray Booth Abstract Catalog 12 Catalog 12

The fixed spray booth is a combination of the wisdom of predecessors and innovative ideas, integrating a spray booth and a drying room (paint baking room) into an integrated spray booth. When it is necessary to dry the workpiece, the heating and air supply system can be designed as a circulating heating and air supply system, continuously heating the air in the spray booth and the surface of the workpiece to ensure the drying requirements of the paint film on the surface of the workpiece inside the spray booth.

When the fixed spray booth dries the workpiece, the heating and air supply system can be designed as a circulating heating and air supply system, continuously heating the air in the spray booth and the surface of the workpiece to ensure the drying requirements of the paint film on the surface of the workpiece inside the spray booth.

As a non-standard product, the fixed spray booth has achieved customization according to the customer's ideas. We design the solution and carry out construction, making the spray booth more distinctive and saving resources, bringing more benefits to the client manufacturer.

◆ The frame of the fixed spray booth is made of light steel structure, ensuring stability and safety; the walls are sealed with composite insulation panels, offering an attractive appearance and quick installation.

◆ A three-dimensional workbench trolley can be configured inside the fixed spray booth, facilitating spray painting of various large workpieces from different angles.

◆ The working area meets labor safety and health standards, and exhaust emissions comply with national environmental protection discharge standards.

◆ Safety protection measures are installed inside the fixed spray booth: when drying, an exhaust concentration alarm device is set up inside the spray booth. When the exhaust concentration reaches a dangerous level, the exhaust system will automatically start and promptly discharge the exhaust to the outdoors, effectively preventing dangerous situations from occurring; safe and reliable!

◆ Lighting System: energy-saving explosion-proof lighting with long service life, uniform lighting, ensuring no shadows during work.

◆ Internal heat exchanger of the fixed spray booth: made of high-quality stainless steel, scientifically designed and welded, featuring a large heat exchange area, high thermal efficiency, energy-saving, and safe reliability.

◆ Control System: self-control system with multiple functions such as constant temperature paint baking and automatic shutdown.

◆ Air Supply and Exhaust System of the Fixed Spray Booth: insulated fans with large air volume, low noise, ensuring uniform airflow speed in the working area, fully meeting the requirements for high-level spraying.

◆ Multiple heating methods for the fixed spray booth: electric heating, steam heat exchange, fuel heating, gas heating, etc.
