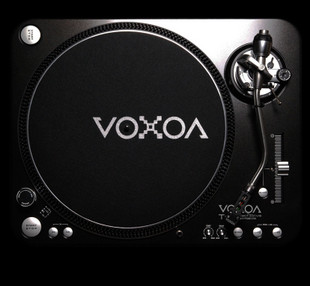

VOXOA T80 Direct-Drive Professional DJ Turntable

Product

T80, Direct Drive Motor Turntable

Power Supply

AC 110-220V, 50/60Hz, 13W

Dimensions

450mm (W) x 353mm (D) x 156mm (H)

Weight

11 Kg

Turntable Section

Manual three-speed

Motor: 16-pole, 3-phase motor

Drive Method: Direct Drive

Platter: Diameter 332mm, aluminum cast platter

Playback Speeds: 33 1/3, 45, and 78 rpm

Wow and Flutter: Less than 0.1% at 33 1/3 rpm speed, WRMS (JIS WTD)

Signal-to-Noise Ratio: Greater than 55dB (DIN-B)

Pitch Control: +/- 10%, +/- 20%, +/- 50%

Electronic Brake

Starting Torque: Greater than 4.5kgf·cm

Startup Time: 0.2~6 seconds (adjustable as needed)

Brake Time: 0.2~6 seconds (adjustable as needed)

Speed Switching Time Required

- From 33 1/3 to 45 rpm less than 0.2 seconds

- From 45 to 33 1/3 rpm less than 0.2 seconds

- From 33 1/3 to 78 rpm less than 0.5 seconds

Tonearm Section

Type: S-shaped tonearm

Usable Tonearm Length: 230mm

Tracking Error Angle: Less than 3 degrees

Anti-skating Range: 0~3 grams

Suitable Cartridge Weight: 13~18 grams (including headshell)

Output: 1.5~3.6mV at 1KHz 5cm/sec

Cartridge: AT-3600L

Frequency Response: 20Hz~20KHz

Channel Separation: Greater than 15dB

Channel Balance: Within 2.5dB at 1KHz
